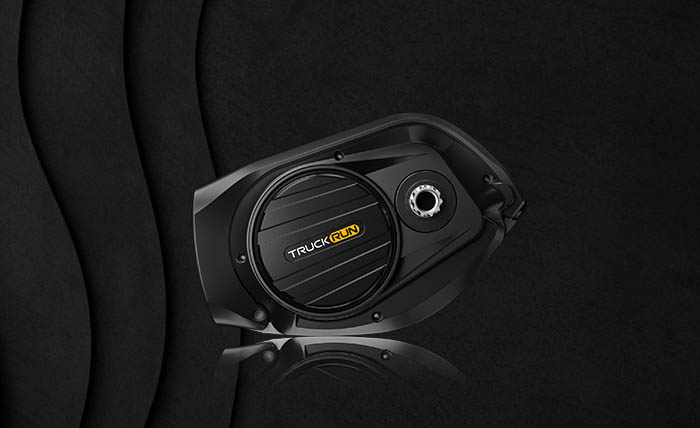

M12: 750W 160 N.m E-MTB Mid-drive ebike motor

Designed for MTB Designed for MTB

Universal Mounting Bracket Frame Universal Mounting Bracket Frame

Powerful Powerful

Designed for riders who appreciate a quiet and sleek appearance

Designed for MTB

The M12 is a mid-drive motor specifically designed for mountain e-bikes, compact in size(192*128*153.5) yet powerful.

Designed for MTB

Universal Mounting Bracket

M12 is compatible with mainstream mounting bracket frame on the market, eliminating the need for additional design, thus saving costs for you.

Universal Mounting Bracket

Powerful

Compared to mainstream products on the market. This ebike mid-drive motor offers superior power at a lighter weight (3.6kg/3.9kg), with the 750W version delivering a maximum torque of up to 160N.m.

Powerful

RoHS

EMC

SGS

UL-Certificate

UL-Test

EN15194

CQC-Mid-drive motor

CCC

Quality Management System

Product parameters

Filter by product name

Filter by product parameters

Reset

	M12	M11	M09	M01	M06	M03	M16	M30
Dimension diagram
Install Location	Mid	Mid	Mid	Mid	Mid	Mid	Mid	Mid
Size/LWH(mm)	192128153.5	60149135*67.4	233163144.5	203153135	220153.5148	203153135	202126.5155
Rated Voltage(DCV)	48	36	48-60	36-48	36	36-48	48	60-72
Rated Power(W)	250~750	250	750/1000/1200	250/350/500	250	250/350/500	350/500/750	3000-6000
Rated speed(Rpm)	90-100	100-130	120/135/160	100/100/115	90	100/100/115	110-130	5000-7500
Max Torque(N.m)	120/160	65	150/200/220	100/120/140	95	100/120/140	80-120	30-60
Efficiency(%)	≥80	≥80	≥80	≥80	≥80	≥80	≥80	≥80
Weight(kg)	2.7/3.6/3.9	1.75	5.8/6.0	3.3/3.6/3.8	3.4	3.3/3.6/3.8	3.8
Shaft type	ISIS	ISIS	JIS/ISIS	JIS	JIS	ISIS/JIS	ISIS
Noise Grade(dB)	<55	<55	<55	<55	＜60	<55	<55	<55
Power off brake	optional	optional	optional	optional	optional	optional	optional
Handlebar throttle	optional	optional	optional	optional	optional	optional	optional
Lights voltage (V/W)	6V3W	6V3W	6V3W	6V3W	6V3W	6V3W	6V3W
Pedal assist function	optional	optional	optional	optional	optional	optional	optional
Shift monitoring	optional	optional	optional	optional	Optional	optional	optional
IP Level	IPX6	IPX6	IPX6	IPX6	IPX6	IPX6	IPX6	IPX6
Operating Temperature (℃)	-20~55	-20~55	-20~55	-20~55	-20~55	-20~55	-20~55	-20~55
Stator insulation class								Class F
